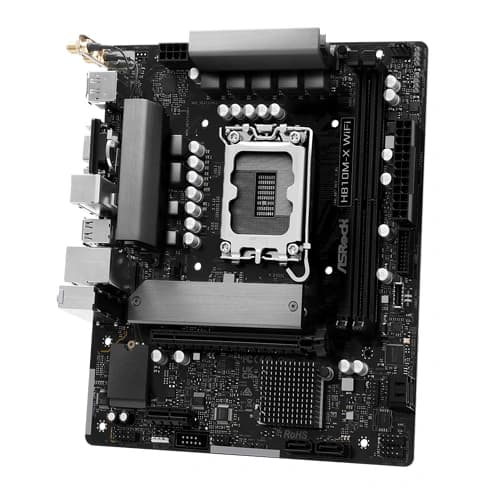

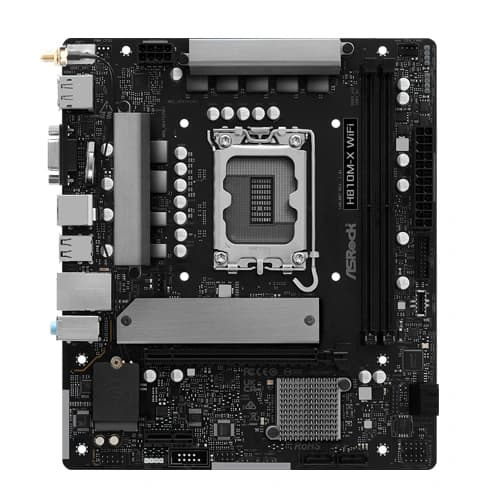

ASRock H810M-X WiFi M-ATX Motherboard

Features:

H810M-X WiFi

• Supports Intel Core Ultra Processors (Series 2) (LGA1851)
• 6+1+1+1+1 Power Phase
• 2 x DDR5 DIMMs
  Supports Dual Channel, up to 6400
• 1 PCIe 4.0 x16, 1 PCIe 4.0 x1
• Graphics Output Options: 1 HDMI, 1 DisplayPort, 1 D-Sub
• Realtek ALC897 7.1 CH HD Audio Codec
• 4 SATA3
  1 Hyper M.2 (PCIe Gen4x4)
  1 USB 3.2 Gen1 Type-C (Front)
  4 USB 3.2 Gen1 (2 Rear, 2 Front)
  6 USB 2.0 (4 Rear, 2 Front)
• Realtek 2.5G LAN
• Dual Band 802.11ac Wi-Fi + Bluetooth

X Series motherboard offers a compact, high-value solution, balancing performance, versatility, and reliability for both professional and daily tasks.

The ASRock X-Series motherboard provides a high-value solution, balancing performance and versatility within a compact form factor. It’s highly capable in handling a wide range of tasks, from professional productivity to everyday usage, striking an excellent balance between affordability, reliability, and efficiency.

Hyper M.2 Gen4 x4

Supports PCI Express 4.0 M.2 SSDs, it is capable of perform twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.

Dual Band 802.11ac WiFi

No one has time for weak WiFi signals and sluggish internet! That’s why this motherboard comes with a 802.11ac WiFi (2.4G / 5G WiFi) module which supports wireless networks and Bluetooth.

3 Graphics Outputs

Complete with all three types of most used connectors! Packed with a D-Sub + DisplayPort + HDMI combo.
